Product Description

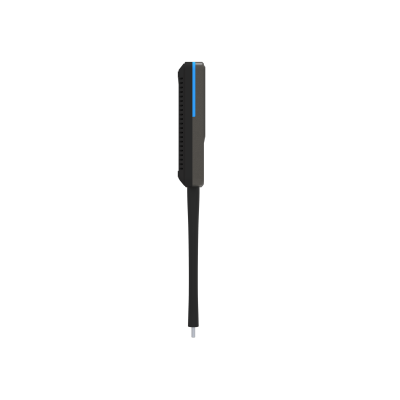

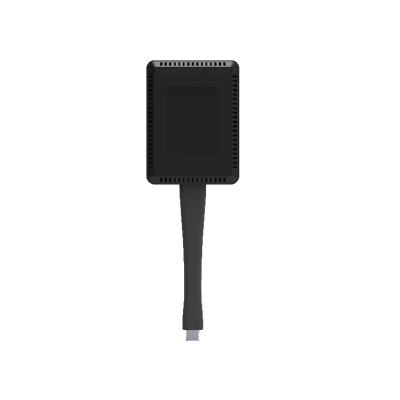

Experience seamless wireless display sharing with the Dahua Wireless Screen-Share Dongle PKP-WP1B. Designed to simplify presentations, this device eliminates the clutter of cables and complex setup. Just plug in the dongle (USB Type-C for data and power), press the share button, and your content is mirrored instantly onto a projector or display.

This dongle supports resolutions from 480p up to 4K, with full PC timing support for common resolutions like 1920×1080 and 3840×2160. It achieves a wireless data rate of 54 Mbps over IEEE 802.11 a/g/n, leveraging both 2.4 GHz and 5 GHz bands. Security is ensured with WPA2-PSK authentication and CCMP encryption.

It operates across major operating systems (Windows 7/8/10/11, macOS, Linux, Chrome OS, Android), with touch control support (10-point) and LED status indicators. The dongle handles frame rates up to 60 fps (for FHD), and transmission distance reaches up to 15 meters. All this with a compact design (176 × 58 × 17 mm, ~80 g) and low power draw (2.5 W average).

Key Highlights

• One-button projection for instant screen sharing

• Supports input resolutions up to 4K, PC timing included

• Output up to 4K (3840×2160) or standard HD

• Full-featured USB Type-C interface (data + power)

• Wireless protocol IEEE 802.11 a/g/n, 54 Mbps throughput

• Dual-band WiFi: 2.4 GHz & 5 GHz (recommend 5 GHz)

• Frame rates up to 60 fps (FHD)

• Touch control support (10 points)

• LED status indicators (blue, green, red)

• Maximum transmission distance: ~15 meters

• Security: WPA2-PSK + CCMP encryption

• Operating temperature: 0 °C to +40 °C

• Dimensions: 176 × 58 × 17 mm

• Weight: ~80 g

• Power consumption: 2.5 W (average)

• Compatible OS: Windows, macOS, Linux, Chrome OS, Android
