Product Description

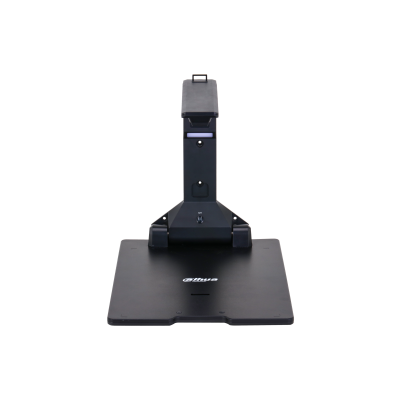

The Dahua DocCam PKP-KB0A redefines how educators, presenters, and office users display documents and physical objects in real time. With support for A4-sized imaging, the device captures crisp, full-color visuals using a 13 MP sensor and outputs them at resolutions up to 4168 × 3126 in MJPG or YUV2 format. Its auto-focus ensures sharp detail between 150 mm and 260 mm distances, while lens distortion remains under 1.5 %.

Beyond imaging, this visualizer offers intelligent features: brightness, contrast, and saturation are adjustable; an AI Photo mode auto-optimizes captured images; annotations, rotation, and erasing can be done via touch or gestures; and a split-screen mode (up to 6 windows) supports side-by-side comparisons. The built-in LED illuminator has 5 brightness levels, improving clarity even under variable lighting conditions.

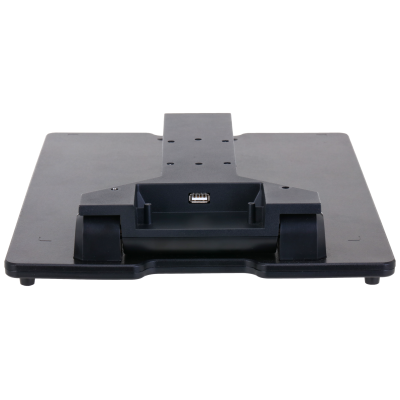

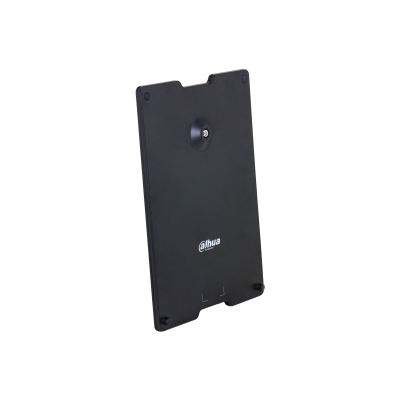

Connectivity is plug-and-play via USB-A (USB 2.0), and power is drawn at 5 V DC with consumption ≤ 2.5 W (standby ≤ 0.25 W). The unit operates in temperatures from –15 °C to +45 °C and humidity up to 93 %. Its compact design measures 388 × 385 × 270 mm when open and folds down to 380 × 70 × 270 mm, weighing just 1.45 kg net. The unit supports wall mounting and comes with mounting accessories.

Whether for remote teaching, hybrid meetings, or in-class demonstrations, the VisionCam PKP-KB0A delivers versatility, clarity, and ease of integration — all while keeping power consumption and setup overhead low.

Key Specifications

• Imaging format: A4 document size

• Sensor resolution: 13 MP effective pixels

• Output resolution: up to 4168 × 3126 (MJPG / YUV2)

• Imaging distance: 150 mm to 260 mm

• Lens distortion: less than 1.5 %

• Output formats: MJPG, YUV2

• Illuminator brightness: 5 adjustable levels

• Annotation: supports touch gestures, 6 colors, eraser sizes, rotation via touch

• Split-screen: up to 6 windows

• Power: 5 V DC via USB, ≤ 2.5 W in use, ≤ 0.25 W standby

• Operating conditions: –15 °C to +45 °C, 0–93 % RH

• Dimensions: open 388 × 385 × 270 mm, closed 380 × 70 × 270 mm

• Net weight: 1.45 kg

• Mounting: wall mount supported, includes mounting kit
